Fixture and Finish Schedule
Key
window
pocket door
single door
folding door
Project Name

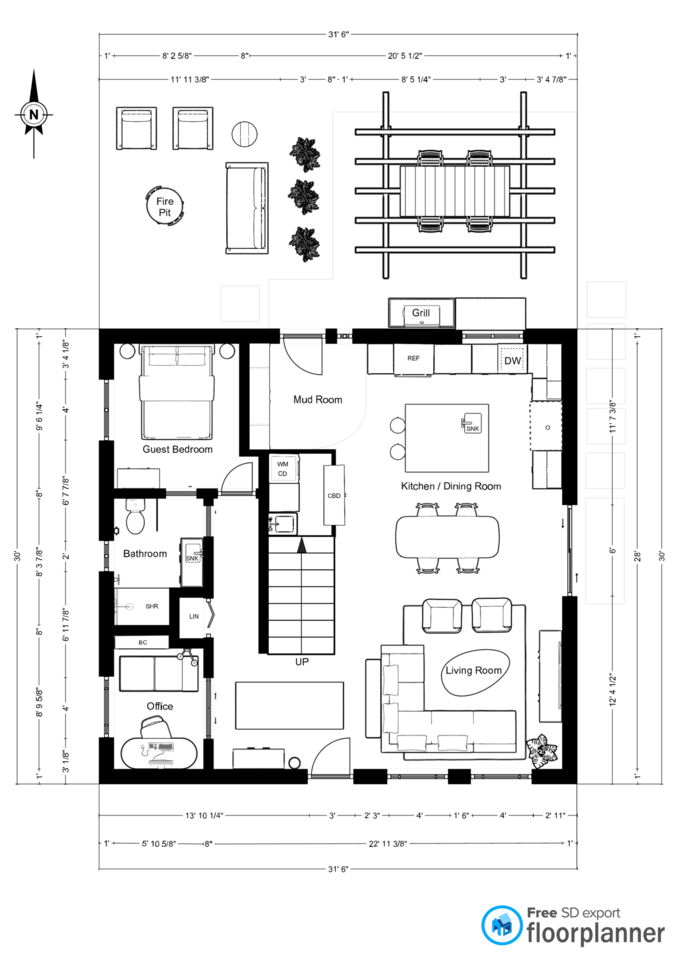

IDI Module 4 Floorplan
Client Name
N/A
Client Address
N/A
Date
March 2024
Drawing
Ground Floor
Scale
Not to Scale
Notes
Prior to any word or renovations, a consultation with a Structural Engineer is required.
Drawing Number
01
Project Name
IDI Module 5 RCP
Client Name
N/A
Client Address
N/A
Date
March 2024
Drawing
Scale
Not to scale
Notes

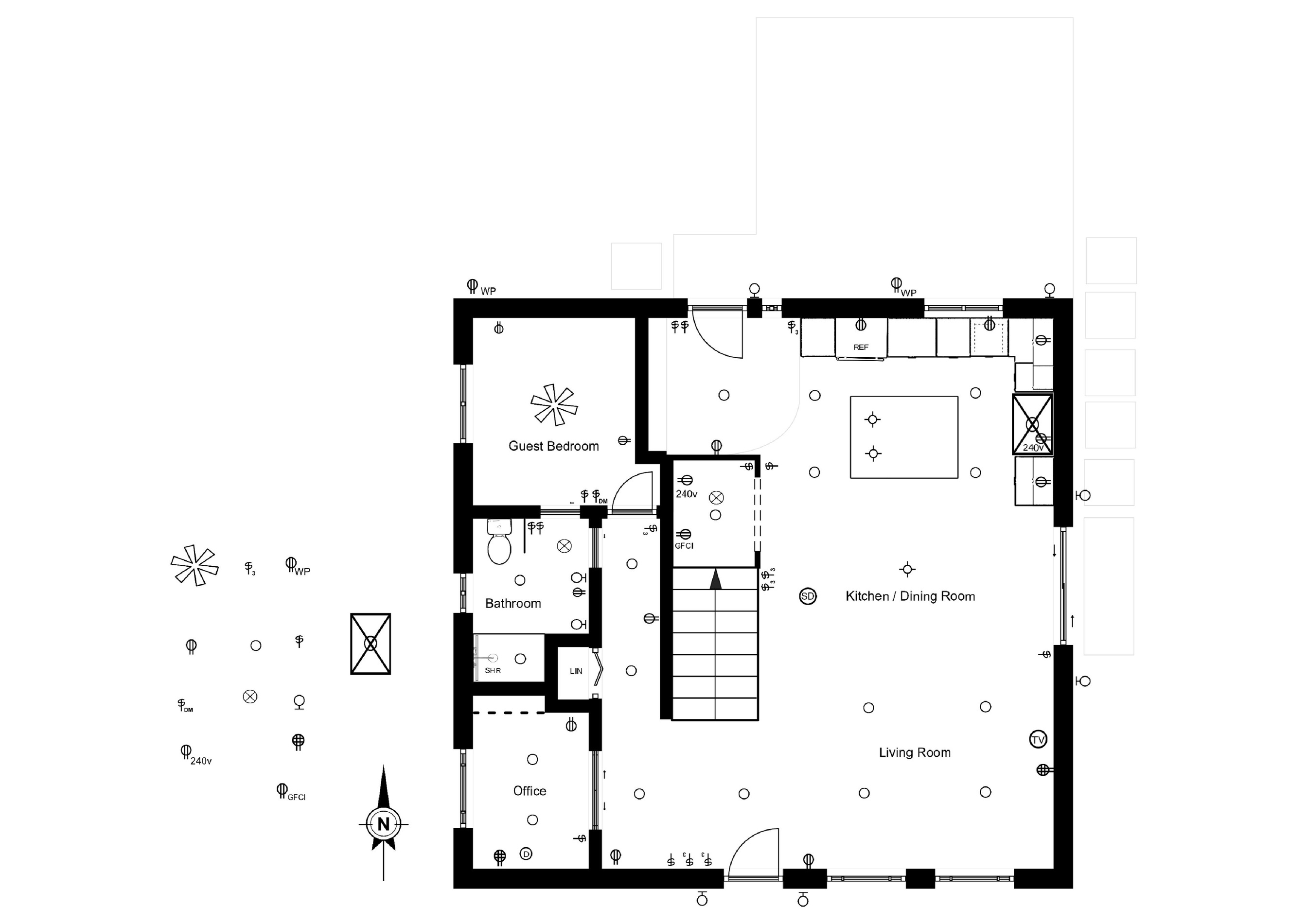

Recessed Downlights
Wall Mounted Fixture
240v Outlet
Weatherproof
Outlet
Reflective Ceiling Plan (RCP)
All work must be completed by a licensed electrician
GFCI Duplex
Exhaust Fan
Ceiling Fan and Light
Exhaust Fan, Heat and Light
Drawing Number
02
Duplex Receptacle
Single Switch
3 Way Switch
Dimmer Switch
Quadruple Receptacle
Trim and Moldings Schedule
Ground Floor
Location
Code & Manufacturer
Details
Sample
Baseboards Throughout
Moldings One
8219 Baseboard
Wood Base
7/8 x 3
Door Casings Throughout
Moldings One
Stepped 1036
Wood Casing
13/16 x 3 1/2
Window Casings Throughout
Moldings One
Stepped 1385
Wood Casing
1/2 x 3 1/16
Crown Molding Throughout
Decorative Features -
Water Closet Chair Rail
Moldings One
Conge 8166
Moldings One
Small Moldings 5306
Wood Crown
1/2 x 2
Wood Small Mold
3/8 x 1 3/16
Paint Schedule
Ground Floor
Location
Code & Manufacturer
Finish
Color
Office Walls
Bathroom Walls
Guest Bedroom Walls
Living Room, Kitchen, and Dining Area Walls
West Hallway Walls (excluding South wall), Linen Closet Walls
Ceilings Throughout
Laundry Room Walls
Baseboards, Trim, Window and Door Frames
Interior Doors
Exterior Doors
Mudroom Walls, (color stops at cabinet on North Wall)
Benjamin Moore
Caribbean Sunset 1377
Benjamin Moore
Good Vibrations 296
Benjamin Moore
Acadia White OC-38
Benjamin Moore
Palm Trees 642
Benjamin Moore
Acadia White OC-38
Benjamin Moore
Simply White OC-117
UO Home
Purple 050
Benjamin Moore
Steam AF-15
Benjamin Moore
Simply White OC-117
Benjamin Moore
Deep Sea 623
Benjamin Moore
Yellow Marigold 2155-30
Eggshell
Eggshell
.French Wash
Eggshell
Eggshell
Flat
Matte Vinyl Wallpaper
Semi-Gloss
Semi-Gloss
Semi-Gloss
Eggshell
Flooring Schedule
Ground Floor
Location
Code &
Manufacturer
Size &
Details
Sample
Office
LLFlooring.com

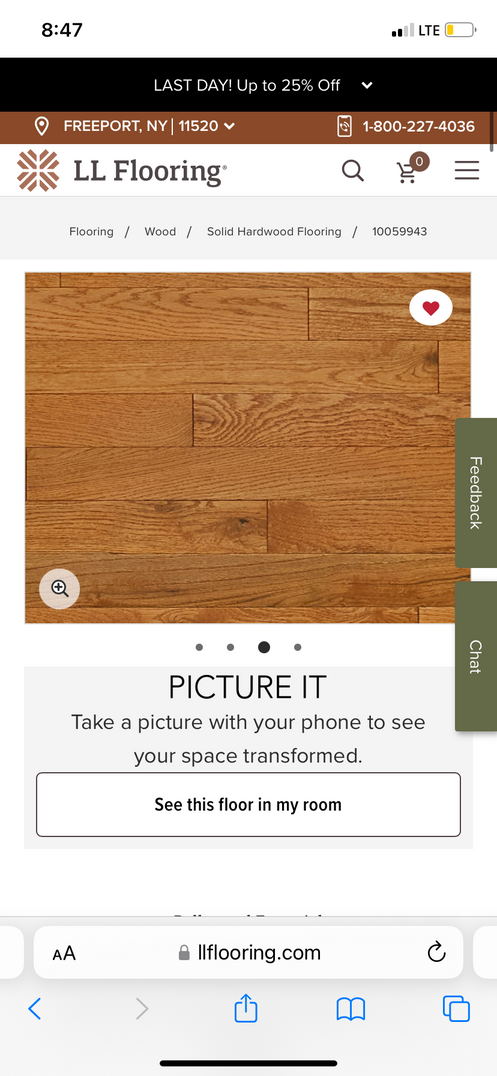

Classic Gunstock Oak Hardwood
5" x 3/4"
23 sq.ft./case
Water Closet
Molovo

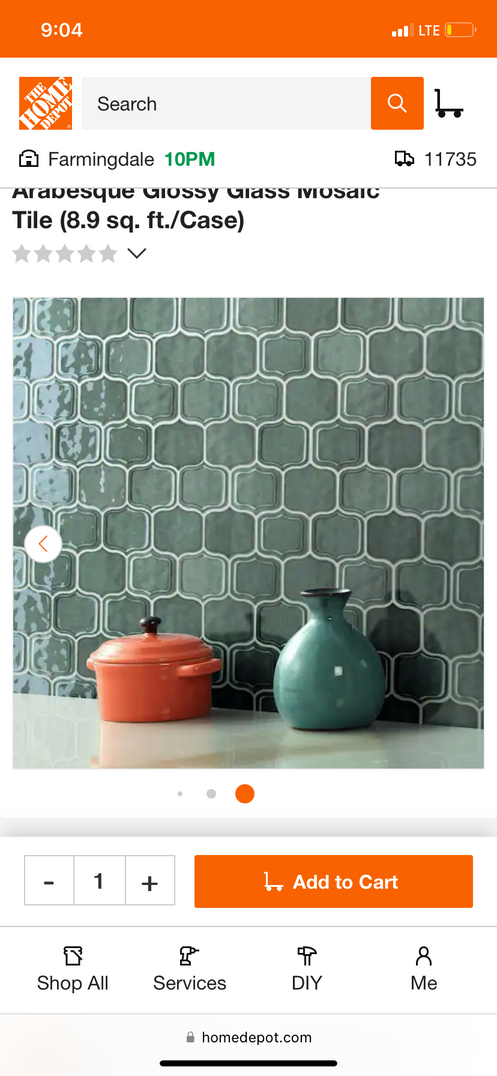

Classic Green Mosaic Tile
11.86" x 10.78"
8.9 sq.ft./case
Mudroom
Tilezz.com

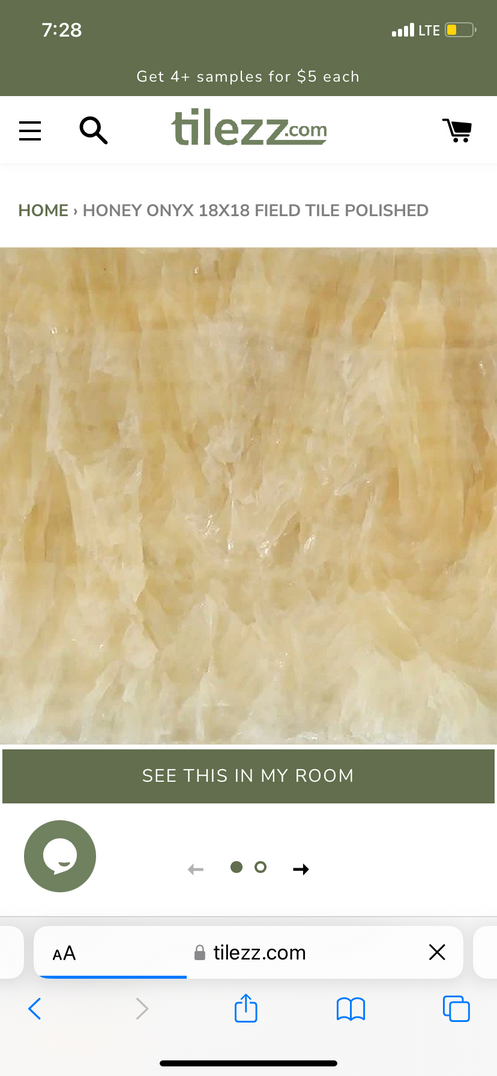

Polished Honey Onyx
12" x 12"
Tilebar

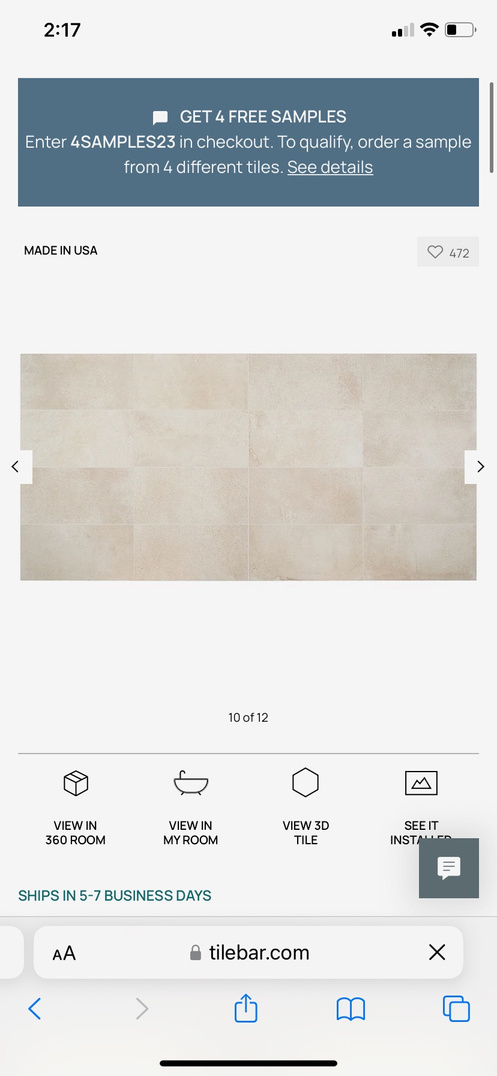

Bronx Sand Matte Porcelain Tile
12" x 24"
15.5 sq.ft./case
Laundry Room
LLFlooring.com
Classic Gunstock Oak Hardwood
5" x 3/4"
23 sq.ft./case
Guest Bedroom
Living Room, Dining Room, Kitchen and West Hallway
LLFlooring.com
Classic Gunstock Oak Hardwood
5" x 3/4"
23 sq.ft./case
Kitchen Detail Schedule
Ground Floor
Location
Name &
Manufacturer
Size &
Details
Sample
Backsplash

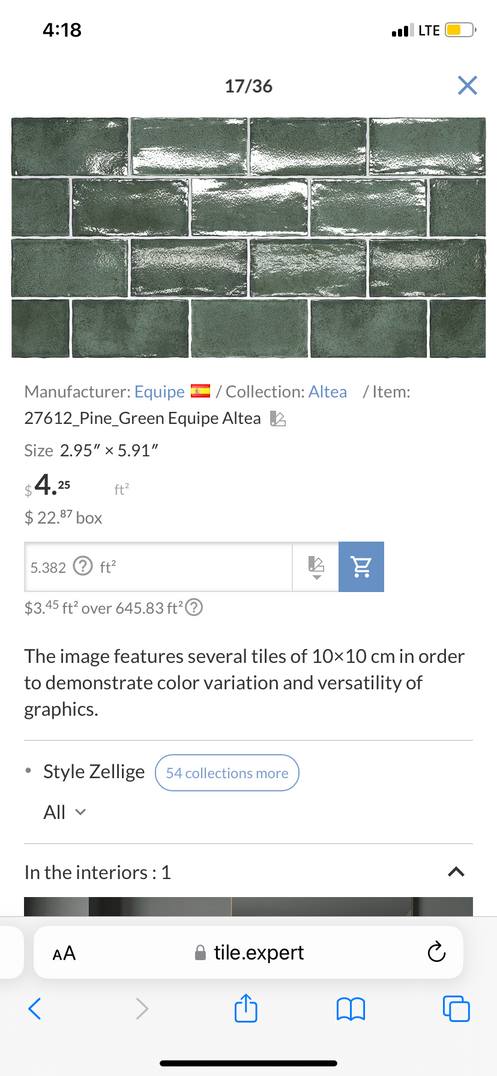

Equipe Zellige Tiles
Pine Green Altea
2.95" x 5.91"
5.38 sq.ft./case

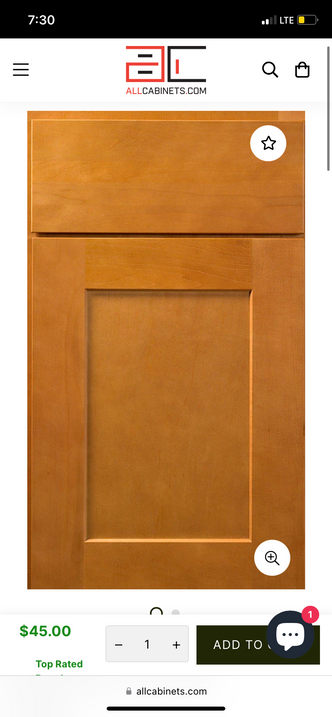

Lower Cabinet Cupboards
Wolf Classic
Dartmouth Honey Stain
Shaker Style
Stained Wood
1/2" Plywood
Upper Cabinet Cupboards
Lancaster Plywood Paintable Shaker

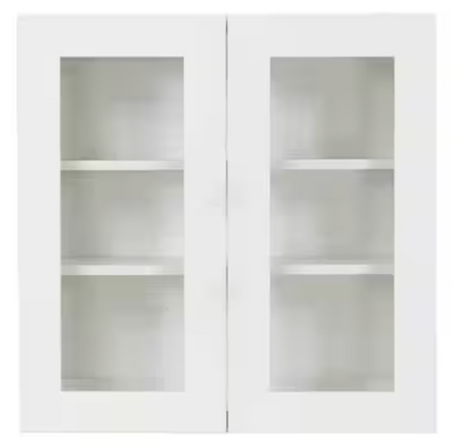

Glass Door Cabinet
30" x 30" x 12"
Countertop
Sink
Tapware
MSI Surfaces
Premium Plus White

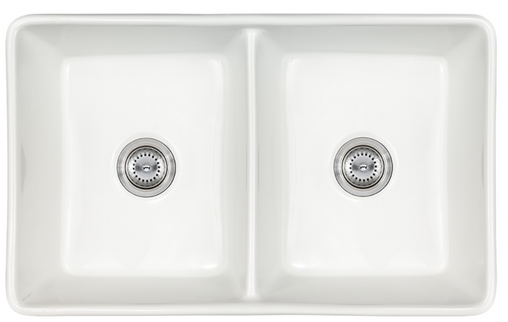

Fireclay Farmhouse White
5050-3220
Kraus Oletto
KPF-2620BB
Polished Quartz
3cm Slabs
White Double Bowl
31 7/8" x 19 3/4"
1.75 GPM Single Hole Pull Down - Brushed Brass
Cabinet Hardware
Throughout
Top Knobs
M2602
Bar Pulls 5 1/16"
Honey Bronze
Laundry Room Detail Schedule
Ground Floor
Feature
Name &
Manufacturer
Size &
Details
Sample
Countertop
Vicostone
Quartz
Pure White

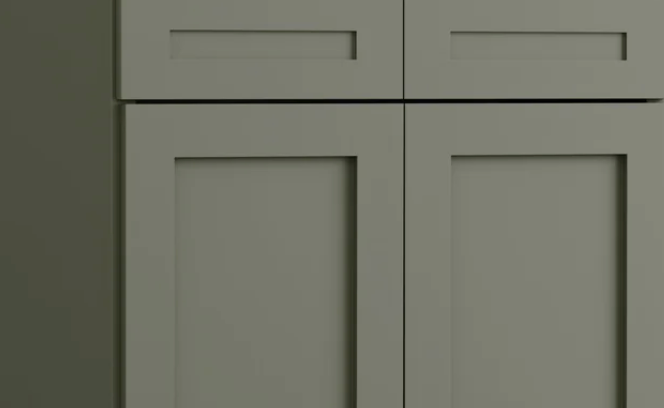

Cabinets
Lanae Home
Shaker Base Cabinet
Soft Sage
34.5" x 24"
Sink
Signature Hardware
447412
Totten 17" Drop In Prep Sink - White
Tapware
Kohler Artifacts
K-99268-2MB
Single Hole Bar Faucet
Brushed Brass
Cabinet Hardware
Top Knobs
TK801HB
Serene 1" Round Cabinet Knob - Honey Bronze
Water CLoset Detail Schedule
Ground Floor
Feature
Name &
Manufacturer
Size &
Details
Sample

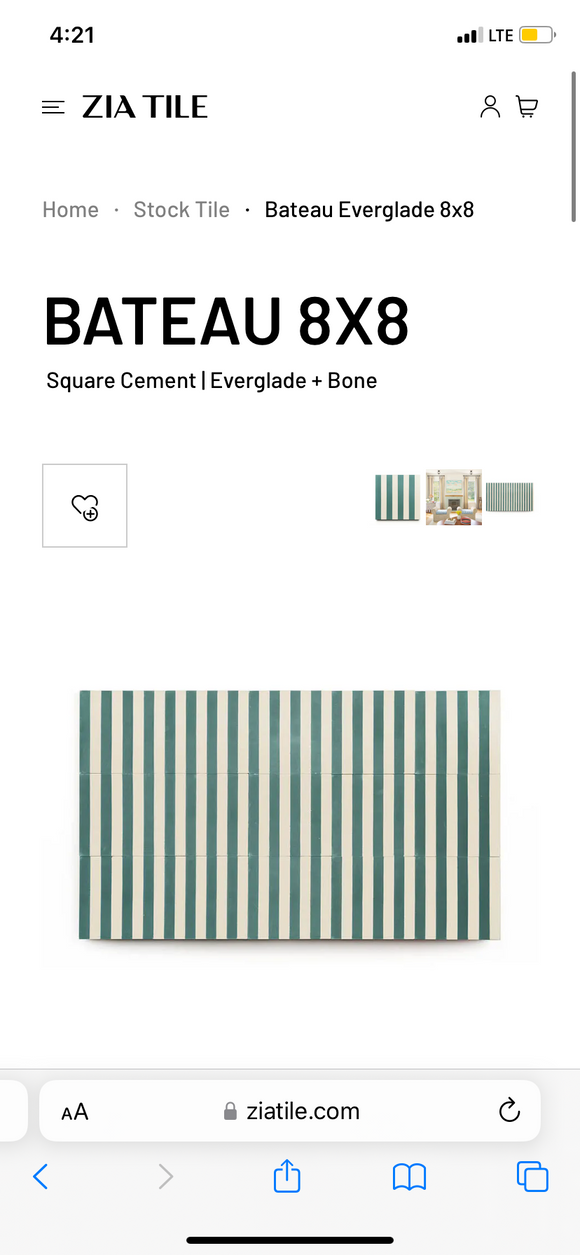

Wall Tiling and Backsplash
Bateau
Everglade and Bone
8" x 8"
5.28 sq.ft./case
Toilet
Litfad
2202318168
Floor Mounted
Ceramic, White Wood Grain Seat
Sink Basin
Victoriahaus Console Sink
P110064349
White / Polished Brass
23.5" x 20"
Sink Fixture
Kingston Brass
FSC1972PX
1.2 GPM Faucet
Polished Brass

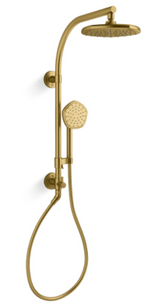

Shower Fixture
Kohler Retro Fit Shower
K-27118-G-2MB
Vibrant Brushed Moderne Brass
Lighting Schedule
Ground Floor
Location
Lighting
Type
Code &
Manufacturer
Finish
Sample
Kitchen and Mudroom
Recessed Lighting
Pendant
Dining and Living Room, West Hallway
Recessed Lighting
Pendant
Laundry Room
Recessed Lighting
Recessed Lighting
Water Closet

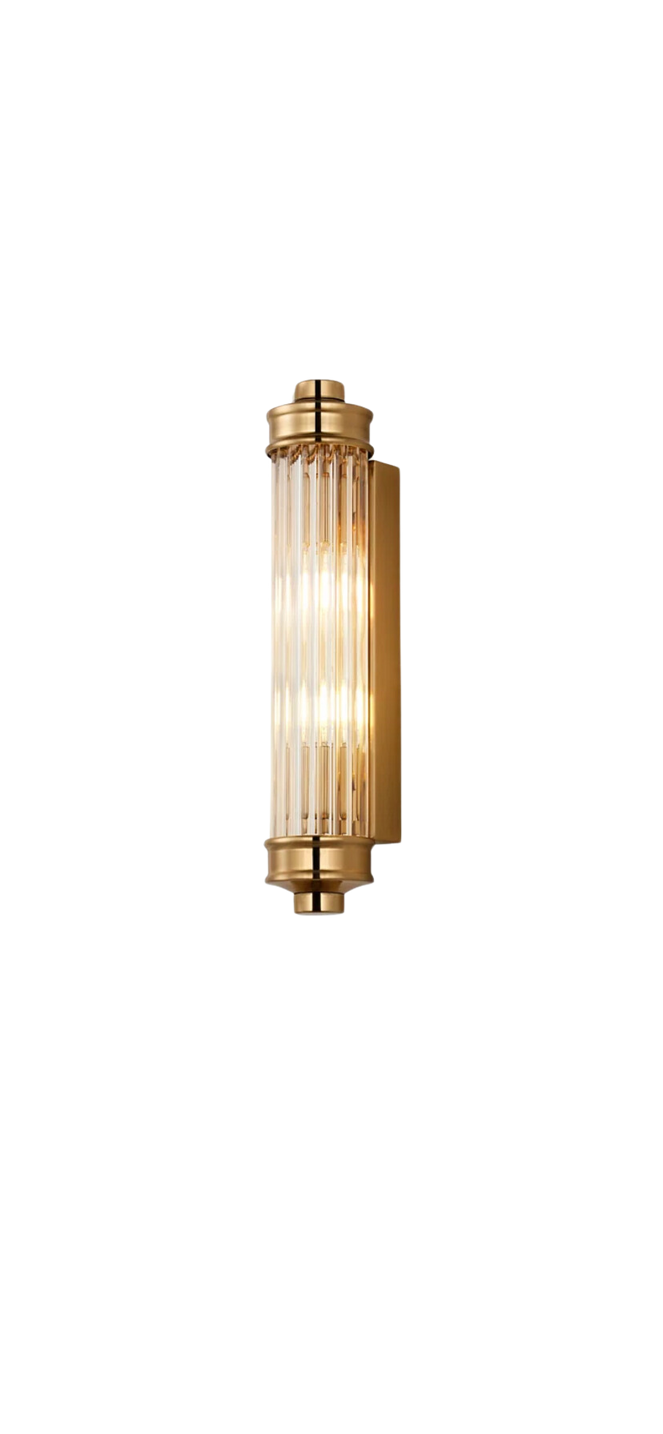

Wall Mounted
Fan and Light Combination
Office
Recessed Lighting
Guest Bedroom
Fan and Light Combination
Exterior
Wall Mounted
